MS-1261A

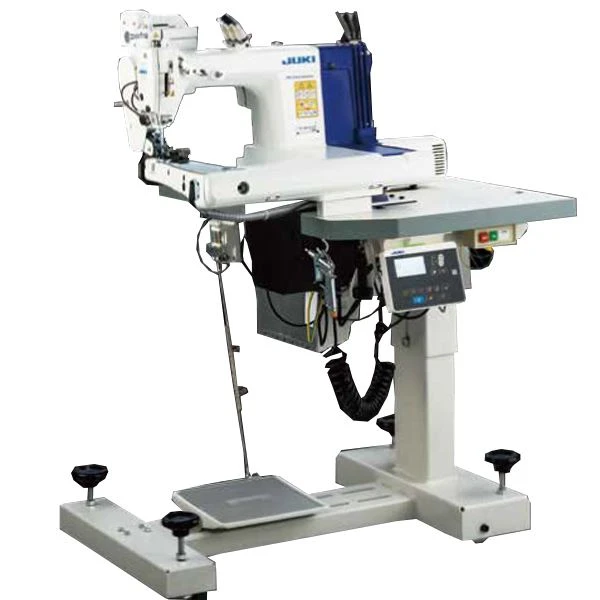

JUKI MS-1261A/DWS 3-needle double chainstitch sewing machine

Achievement of high-quality seams at a high speed

The MS-1261A is provided with digital functions for preventing stitch skipping and stitch gathering as well as for supporting smooth feed of multi-layered parts of materials that are considerably heavier in weight than the other parts of materials. These capabilities are highly required in sewing jeans.

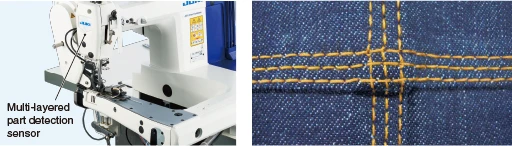

The newly-developed machine head is provided as standard with the presser foot pressure control function that has the multi-layered part detection sensor. In combination with the belt-type digital cloth puller which enables digital setting of the belt presser foot pressure and feed length, the sewing machine achieves "more beautifully-finished seams".

Support to the digital control facilitates the adjustment of sewing for various kinds of materials. Even when sewing heavy-weight materials, the sewing system produces soft and beautiful seams.

The conventional feed-off-the-arm chainstitch machines have specially-shaped machine head due to its stitch type.

In pursuit of ease of sewing and ease of handling of materials, the MS-1261A/DWS has adopted newly-developed machine head the shape of which is like of the general-purpose sewing machines.

The MS-1261A/DWS is the first sewing system that comes with an energy-saving high-powered direct-drive motor. As a result, workability and maintainability are improved.

In the application, there are items of management setting (terminal registration), sewing machine data (sewing data), problem-solution chart.

In the problem-solution chart, we can generate production graphs,the availability chart, etc. for each acquired sewing machine data so it can be used for checking the current situation and analyzing it.

Through the improvement to the feed locus, needle bending is prevented by decreasing the feed amount when the needle penetrates the material. As a result, the looper thread is securely retained to ensure stable loop formation, thereby allowing the looper to catch the needle thread appropriately to produce seams without fail. In addition, the backward-moving type needle guard helps feed heavy-weight materials smoothly, thereby preventing the occurrence of stitch skipping.

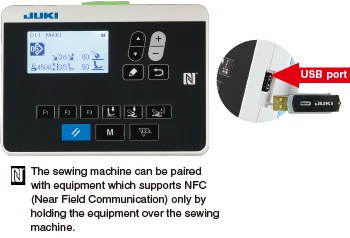

Data on sewing machine adjustments made according to the product to be sewn can be transferred to a commercially-available Android tablet in contactless mode. This enables quick check for uniform settings as well as confirmation of conditions of sewing machines in a sewing line, thereby facilitating setup changes.

*Android OS Version 6.0 is recommended to use JUKI Smart APP.

(Operation is confirmed with respect to Versions 5.0 and later. )

This belt-type digital cloth puller prevents stitch skipping and stitch gathering that are likely to occur at multi-layered parts of material.
